What Is the Difference Between Single Acting and Double Acting Pneumatic Actuators?

2026-10-14 11:44:25

1. Introduction: The Core of Pneumatic Control

In automated industrial pipelines, pneumatic actuators serve as the muscular force that physically opens, closes, or modulates valves. While all pneumatic actuators rely on compressed air to generate mechanical movement, the method by which they manage that air—and how they return to their resting state—defines their classification. The two primary categories dominating the fluid control landscape are single-acting and double-acting actuators.

At a glance, the difference lies in the return mechanism: single-acting actuators use compressed air for one motion and a mechanical spring for the reverse, whereas double-acting actuators rely on compressed air for both motions. However, the engineering implications of this difference profoundly affect system safety, installation space, energy consumption, and long-term maintenance.

2. Deep Dive: Single-Acting Pneumatic Actuators

Single-acting actuators, frequently referred to as "spring-return" actuators, are designed with a built-in mechanical fail-safe. Their internal chamber is divided into two distinct sections: one for compressed air and one housing heavy-duty coil springs.

How They Work

When compressed air is directed into the actuator's pressure chamber, it forces the piston (or diaphragm) to move, compressing the internal springs and operating the valve. When the air supply is intentionally vented—or accidentally lost due to a system failure—the compressed springs forcefully expand, driving the piston back to its original resting position.

Configurations: Normally Closed vs. Normally Open

• Normally Closed (NC) / Spring-to-Close: The springs keep the valve closed by default. Air pressure is required to open it. If power or air is lost, the valve automatically shuts. This is the most common configuration for hazardous media, ensuring that chemical spills or steam leaks are prevented during an outage.

• Normally Open (NO) / Spring-to-Open: The springs keep the valve open by default. Air pressure is used to close it. If the system fails, the valve springs open. This is vital for emergency cooling lines or pressure relief systems where fluid must flow freely to prevent catastrophic equipment damage.

Primary Advantages

• Intrinsic Safety: The guaranteed fail-safe position makes them mandatory in many high-risk industries.

• Simplified Air Routing: They only require a single air supply line and a 3/2-way solenoid valve to operate, simplifying the pneumatic tubing layout.

Inherent Limitations

• Larger Physical Footprint: To accommodate the heavy mechanical springs, the actuator housing must be significantly larger and heavier than a double-acting model of the same power rating.

• Spring Fatigue: Over millions of cycles, mechanical springs can suffer from metal fatigue, potentially requiring replacement to maintain full closing force.

• Force Loss: A portion of the compressed air's energy is consumed simply to fight and compress the spring, meaning the net output torque is lower.

3. Deep Dive: Double-Acting Pneumatic Actuators

Double-acting actuators eliminate the mechanical springs entirely. Instead, they utilize compressed air to drive the piston in both directions. These actuators feature two separate air chambers (Chamber A and Chamber B).

How They Work

To open the valve, compressed air is pumped into Chamber A, while Chamber B is exhausted. The pressure differential forces the piston to move. To close the valve, the process is reversed: air is pumped into Chamber B, and Chamber A is exhausted, pushing the piston back to its starting point. This "air-to-air" operation provides consistent, controllable force throughout the entire stroke.

Primary Advantages

• Maximum Efficiency and Torque: Because there are no springs resisting the pneumatic force, 100% of the compressed air's energy is converted into mechanical output. This allows them to generate significantly higher torque and thrust.

• Compact and Lightweight: The absence of springs allows for a much smaller housing, making them ideal for installations where space is constrained.

• Consistent Force: The output force remains constant across the entire operating cycle, unlike spring-return models where the spring's force changes as it compresses or expands.

• Lower Maintenance: With fewer internal mechanical components subject to wear (no springs), double-acting models often boast a longer maintenance-free lifecycle.

Inherent Limitations

• No Automatic Fail-Safe: If the facility loses compressed air, the actuator will remain frozen in its last position. Establishing a fail-safe requires external, complex add-ons like pressurized air accumulator tanks.

• Complex Air Control: They require a 5/2-way solenoid valve and two separate air supply lines, increasing the complexity of the pneumatic control circuit.

• Higher Air Consumption: Because air is used for both strokes (opening and closing), they consume more compressed air per complete cycle than single-acting models.

4. Head-to-Head Comparison Table

To facilitate a clear decision-making process, the following table summarizes the technical and operational distinctions between the two actuator types.

5. How to Choose Based on Industrial Application

The choice between single and double-acting actuators should never be arbitrary; it must be dictated by the specific requirements of the industrial process and the media being handled.

When to Choose Single-Acting Actuators

Safety is the overriding factor here. You must choose a single-acting actuator when a loss of power or air pressure could result in a dangerous situation, product spoilage, or environmental damage.

• Chemical and Pharmaceutical Manufacturing: When dealing with aggressive organic and inorganic chemicals, valves must fail-closed to prevent toxic leaks.

• Steam and High-Temperature Sterilization: In food processing, brewing, and hospital sterilization equipment, high-temperature steam lines must be secured instantly during a fault to protect personnel.

• Water Treatment: Preventing accidental discharge of untreated water or heavy sludge during a power grid failure.

When to Choose Double-Acting Actuators

Efficiency, space, and power dictate this choice. Opt for double-acting actuators when fail-safe positioning is not a critical safety requirement, but high performance is.

• High-Pressure Fluid Lines: When a valve requires massive breakaway torque that would require an impractically large spring-return actuator.

• Space-Restricted Environments: In dense manifolds used in textile dyeing, bleaching, and rubber machinery, the compact nature of double-acting actuators allows for tighter piping configurations.

• Continuous Modulating Control: For applications that require rapid, continuous cycling back and forth, the lack of mechanical springs reduces wear and tear.

6. Integrating Actuators with Premium Valves: The Fengdu Advantage

Regardless of whether a system demands the safety of a single-acting actuator or the power of a double-acting model, the actuator is only as effective as the valve it operates. Zhejiang Fengdu Technology Co., Ltd. stands at the forefront of this integration, manufacturing world-class fluid control solutions tailored for modern industry.

Tailored Solutions for Every Industry

Founded in 2020 and located in the prestigious valve manufacturing hub of Longwan, Wenzhou, Zhejiang Fengdu Technology Co., Ltd. leverages a mature industrial supply chain to produce highly competitive automated valves. Our product portfolio is designed to seamlessly integrate with both single and double-acting pneumatic systems:

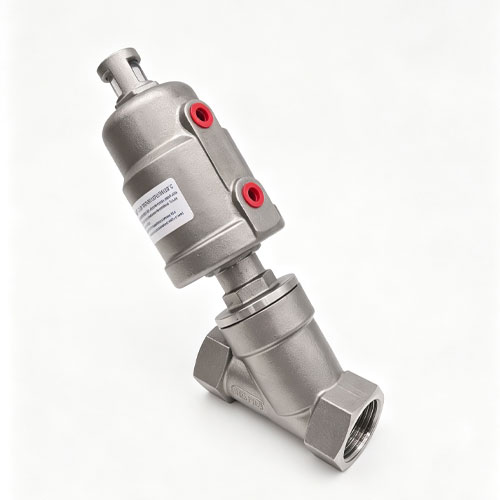

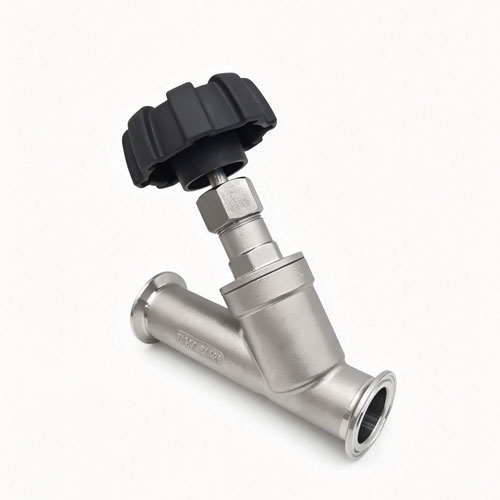

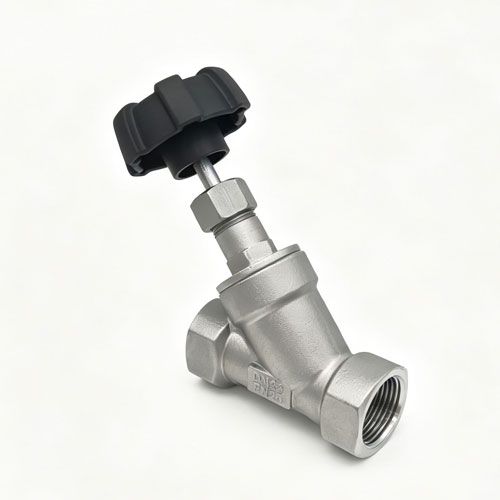

• Pneumatic angle seat valves: Highly customizable with either spring-return (for fail-safe steam and chemical shutoff) or double-acting cylinders (for rapid, continuous cycling in textile and dyeing applications). These valves offer exceptional flow rates and handle neutral gases, water, and slightly corrosive media with ease.

• Sanitary Valves for Food & Beverage: Our Sanitary diaphragm valves, sanitary ball valves, and sanitary butterfly valves are engineered for the rigorous hygiene standards of the beer, beverage, and pharmaceutical industries. They can be equipped with normally-closed single-acting actuators to ensure product safety during CIP (Clean-In-Place) and sterilization processes.

• Robust Industrial Valves: We supply heavy-duty pneumatic ball valves, reversing valves, and sampling valves, ideal for the demanding environments of rubber machinery manufacturing and nitrogen/oxygen generation plants.

Partnering for Global Success

As a dynamic and rapidly expanding enterprise, Zhejiang Fengdu Technology Co., Ltd. is actively forging partnerships across the globe. We provide not just products, but complete integrated equipment procurement solutions. We are currently recruiting ambitious partners to join our network:

• Regional General Agents: Secure highly competitive pricing and exclusive support to dominate local fluid control markets.

• Foreign Trade Agents: Expand your export offerings with our internationally recognized, high-quality pneumatic valve series.

• Network/E-commerce Agents: Benefit from our robust production capacity and streamlined logistics to serve digital B2B buyers effectively.

7. Conclusion

The distinction between single-acting and double-acting pneumatic actuators fundamentally comes down to balancing safety against spatial and mechanical efficiency. Single-acting actuators provide indispensable fail-safe security through mechanical springs, making them non-negotiable in hazardous or critical environments. Double-acting actuators, conversely, offer unparalleled power, compact design, and consistent force for high-demand, high-torque applications.

By understanding these differences, system designers can optimize their pipelines for both safety and performance. Partnering with an experienced, innovative manufacturer like Zhejiang Fengdu Technology Co., Ltd. ensures that whichever actuator type your process requires, it is paired with a valve built for longevity, precision, and absolute reliability.
